AM. FLYER REPAIR CLINICS
CLINIC # 14: WIRING AM. FLYER DIESELS

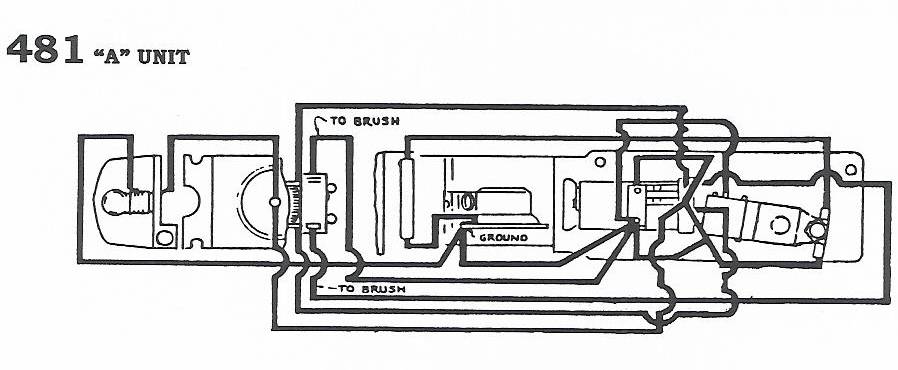

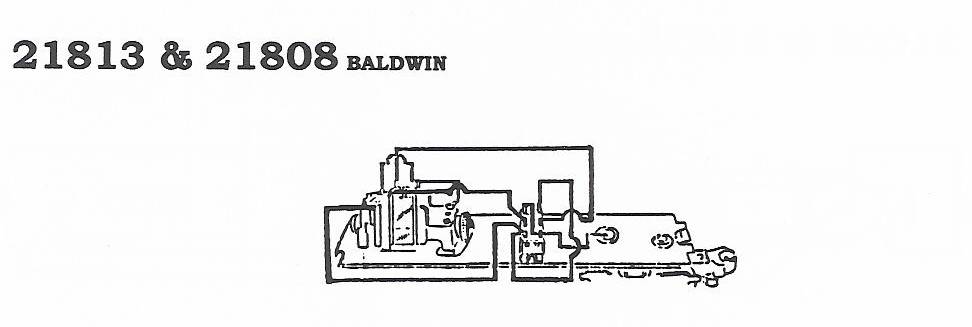

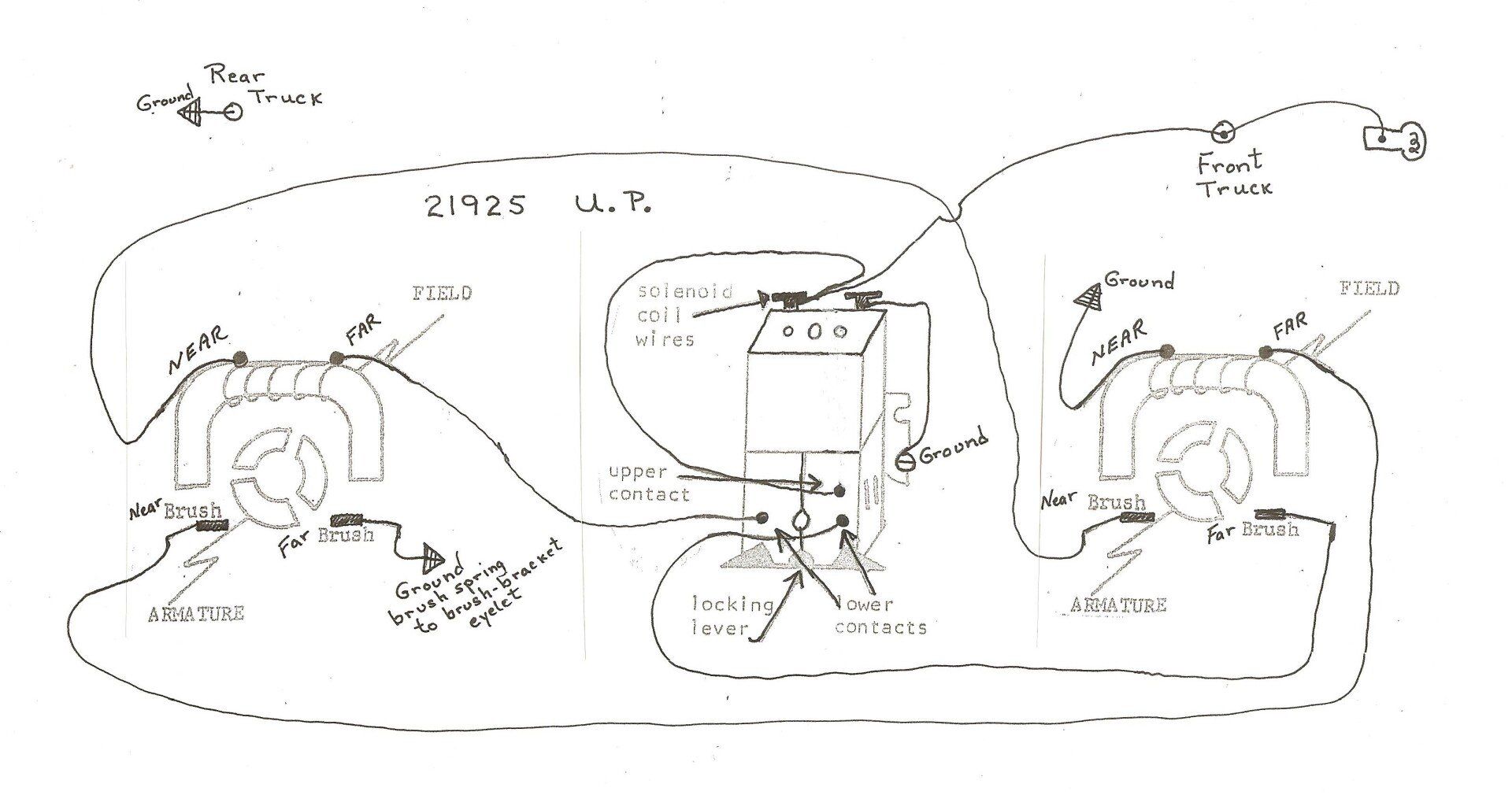

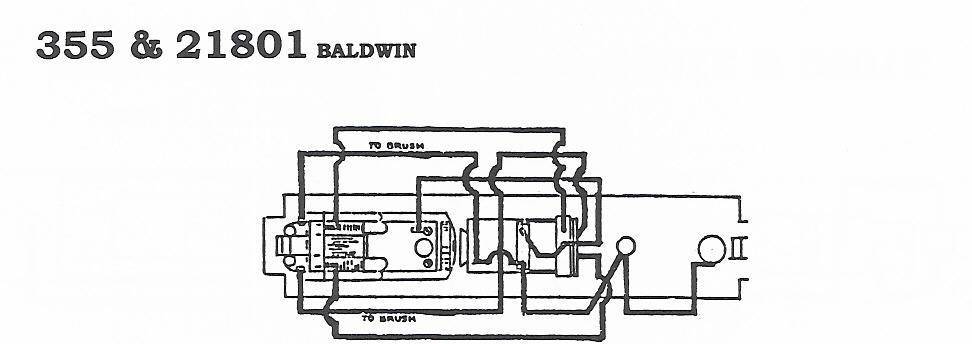

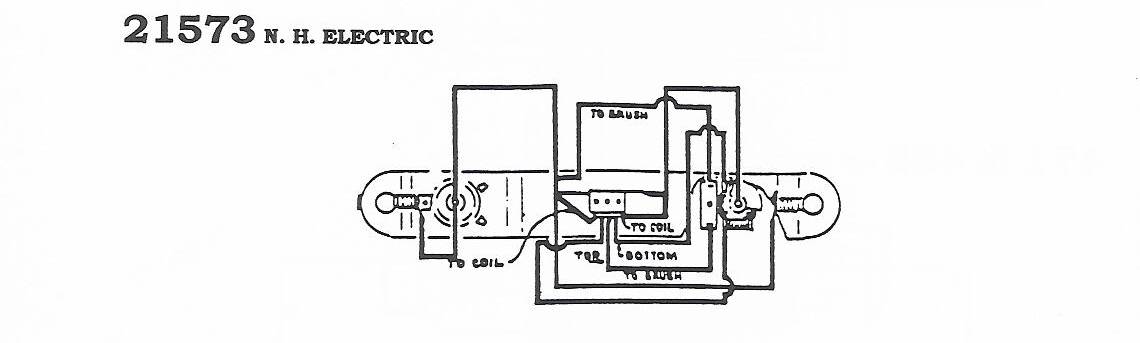

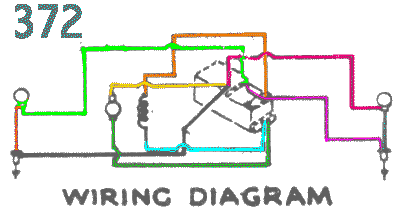

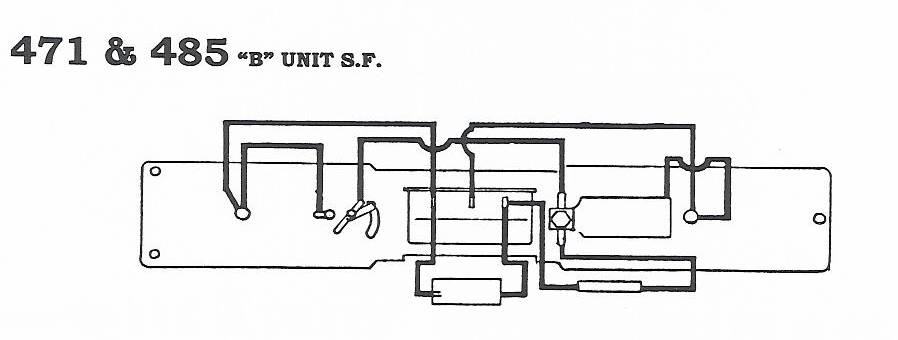

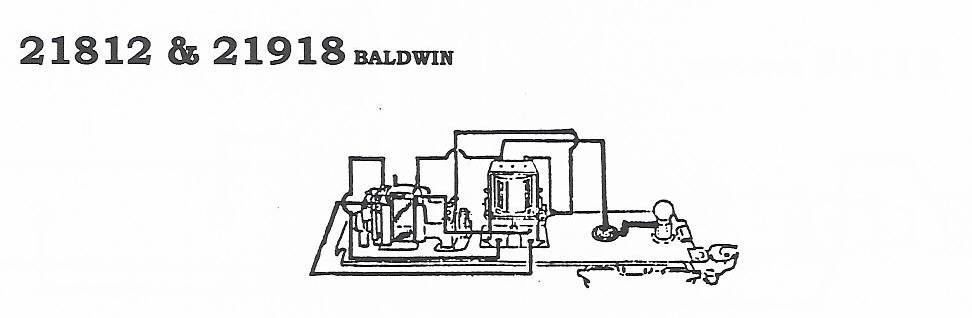

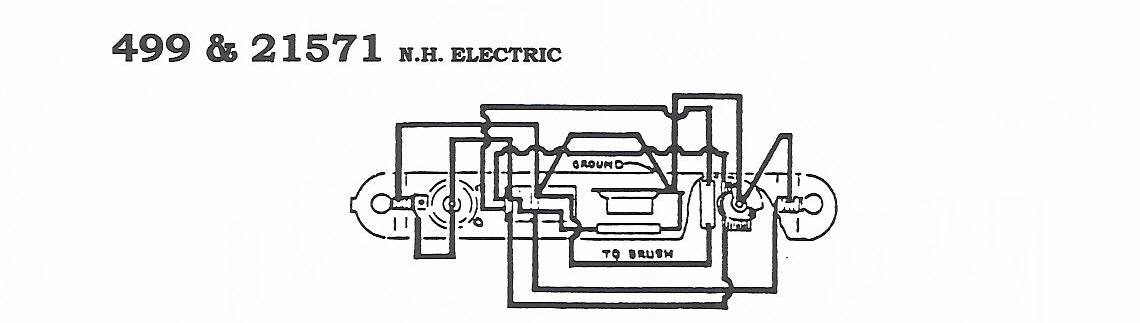

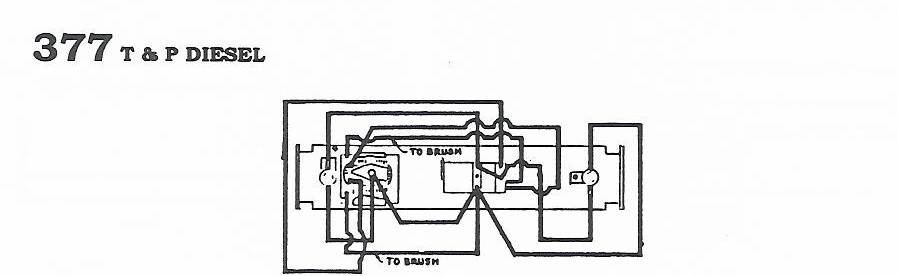

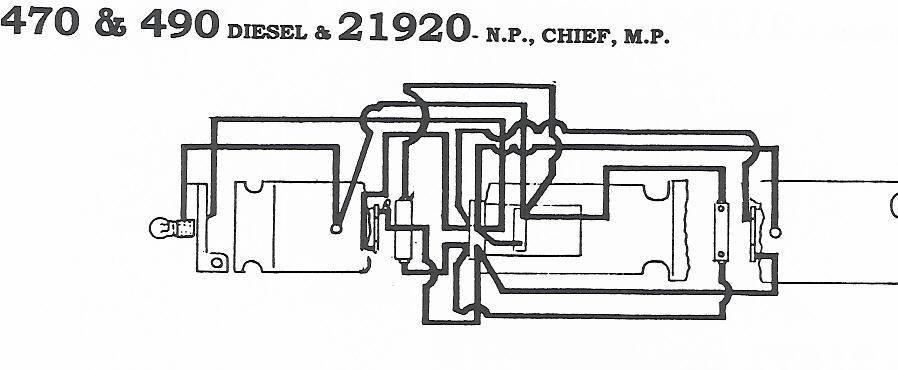

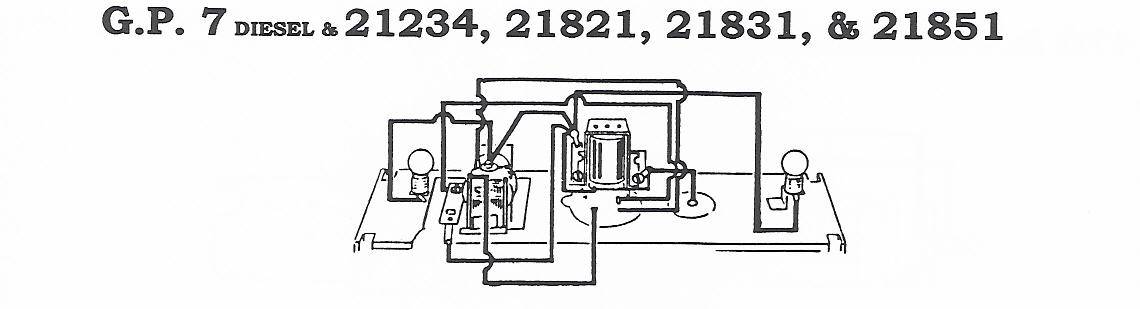

ENGINE WIRING DIAGRAMS---
(click image below to enlarge)
